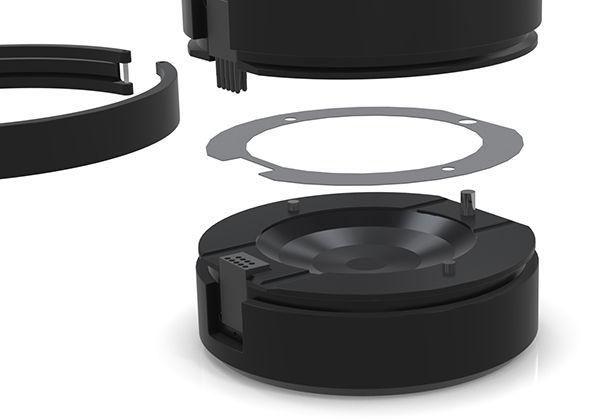

TELEDYNE TASMAN DVL

Teledyne RDI’s new Tasman DVL represents the next generation of DVL technology, taking your navigation to the next level.

Max Bottom Tracking Range: up to 420m with XRT option (300 kHz); up to 160m with XRT option (600 kHz)
Min Bottom Tracking Range: 0.3m, 0.15m
Long Term Accuracy (Bottom Tracking): ±0.08% ±0.1 cm/s (<8 m altitude), ±0.3% ±0.1 cm/s (>8 m altitude); ±0.06% ±0.1 cm/s (<4 m altitude), ±0.2% ±0.1 cm/s (>4 m altitude)
Max Water Profiling Range: 150m, 60m
Long Term Accuracy (Water Profiling): ±0.6% ±0.1 cm/s; ±0.3% ±0.1 cm/s
Velocity Range: ±17 m/s; ±12 m/s
Max Ping Rate: 7 Hz; 12 Hz
Beam Angle: 30°
Standard Depth Rating (others may be available): 6,000 m
Standard Sensors: Temperature, Leak Detection, Health Monitor, Dual-axis Digital Inclinometer
Communications: Ethernet & RS232; optional RS422
Average Power Consumption: 11.8W; 5.4W
